WaveShare　16662

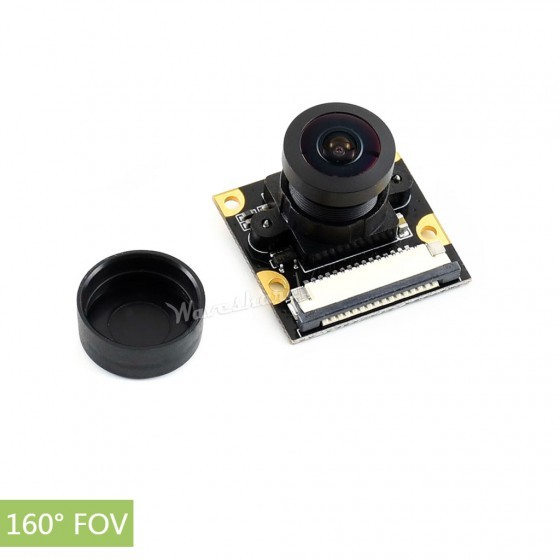

【16662】IMX219-160 Camera 160° FOV Applicable for Jetson Nano

Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
8 Megapixels
Sensor: IMX219
Resolution: 3280 × 2464
Lens specifications:
CMOS size: 1/4inch
Aperture (F): 2.35
Focal Length: 3.15mm
Angle of View (diagonal): 160 degree
Distortion: ＜14.3%
4 screw holes
Used for attachment
Provides 3.3V power output
Dimension: 25mm × 24mm
Applications
Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

Face recognition
Road mark detection
License plate recognition


Selection Guide
PRODUCT PIXELS SENSOR INFRARED CAMERA ANGLE OF VIEW (DIAGONAL) (DEGREE) APERTURE (F) FOCAL LENGTH (MM) PCBA SUIT FOR
RPi Camera V2 8 Mega IMX219 × 1 62.2 2.0 3.04 √ Raspberry Pi, CM3/3+/4,
Jetson Nano, Jetson Xavier NX
IMX219-D160 × 1 160 2.35 3.15 ×
RPi NoIR Camera V2 √ 1 62.2 2.0 3.04 √ Raspberry Pi, CM3/3+/4,
Jetson Nano
IMX219-77 Camera × 1 79.3 2.0 2.85 √ CM3/3+/4,
Jetson Nano, Jetson Xavier NX
IMX219-77IR Camera √ 1 79.3 2.0 2.85 √
IMX219-120 Camera × 1 120 2.0 1.79 √
IMX219-160 Camera × 1 160 2.35 3.15 √
IMX219-160IR Camera √ 1 160 2.35 3.15 √
IMX219-160 IR-CUT Camera √ 1 162 2.7 1.75 √
IMX219-170 Camera × 1 170 2.4 2.2 √
IMX219-200 Camera × 1 200 2.0 0.87 √
IMX219-83-Stereo-Camera × 2 83 2.4 2.6 √ CM3/3+/4, Jetson Nano (B01),
Jetson Xavier NX
The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs
Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit
Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only
Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit
